(#40) Black Bracket 3" Black Springs & 1" Weld on Mounts Price: £49.99
This mounting kit has been Manufactured to suit most Custom Solo Seats. Manufactured from High quality Carbon steel and Powder Coated the mounting bracket has two slots for adjusting the position of your seat. The Front Mounting Plate is also made from Carbon Steel & has a fixing hole for an M8 Caphead Screw which can be fixed to a frame weld mount or an existing bolt hole. They are bolted togethar using a stainless steel fitted bolt which provides the hinge point for the seat. The Spring mounts(pair) have been Manufactured to suit both old style springs which have an 8-10mm base hole and also to suit more modern springs which have a 16-18mm base hole.The kit comes with a 1.5mm thick Stainless Steel retaining washer and a Galvanised Steel retainer clip. The mounts have an 12.7mm Radius and need to be welded in place on the motorcycle frame once all other seat components are in place. The 3" Springs(pair) are made from Heavy Duty Carbon Spring Steel and Chrome Plated for a durable finish and will provide good stability as well as looks. Kits can be supplied with 2" Springs if preferred!!

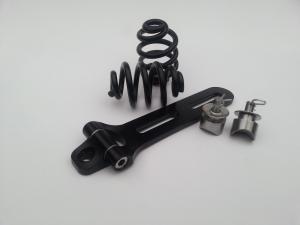

Kit includes:
- 1 x Heavy Duty Bracket Powder Coated Black
- 1 x Heavy Duty Front Pivot Mount Powder Coated Black
- 1 x M8 Stainless Steel Fitted Hinge Bolt
- 2 x M8 Clearance Washers
- 2 x 3" Heavy Duty Powder Coated Black Springs
- 2 x Weld on Spring Mounts 1" Diameter
- 2 x Galvanised Spring Retainer Clips
- 2 x Stainless Spring Retainer Washers
We recommend a qualified person should undertake all Fitting, Welding & Fabrication work for optimum results and saftey.
If this item is out of stock email us for availability.
